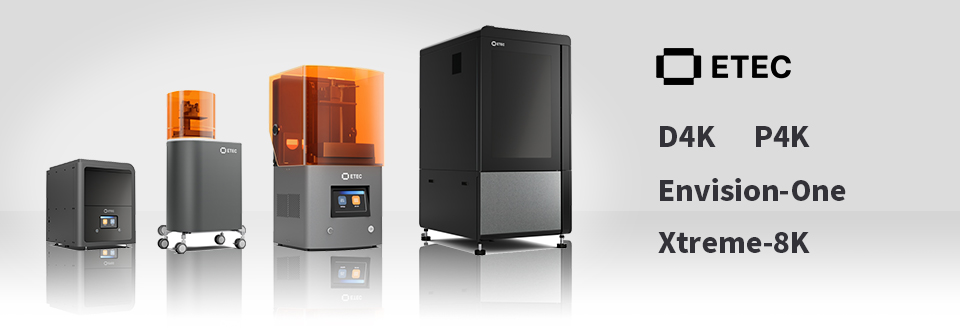

ETEC offers a variety of 3D printing systems with the ability to mass produce polymer parts with the speed and quality needed for demanding end-use applications
ETEC offers a variety of 3D printing systems with the ability to mass produce polymer parts with the speed and quality needed for demanding end-use applications. ETEC printers deliver parts with exceptional accuracy, superior part properties, fine feature detail, and smooth surface finish at a scale and cost that is competitive with traditional manufacturing techniques like injection molding.

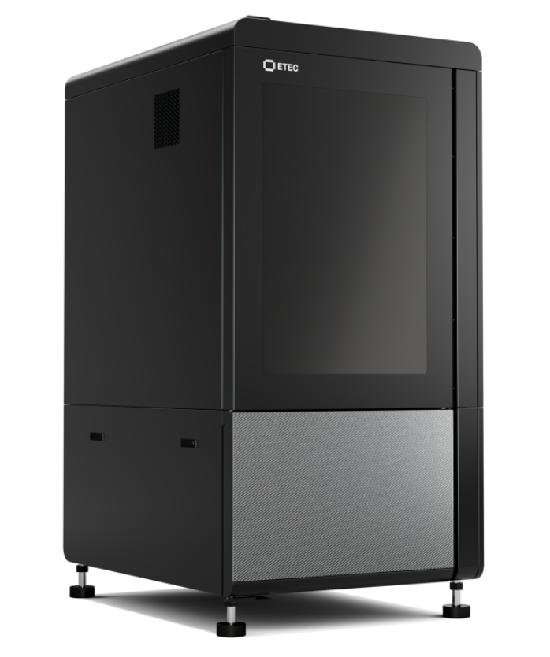

The Xtreme 8K makes volume production of 3D-printed parts a reality, with the ability to print thousands of parts per day. With wide material compatibility, including hard plastics, high-temperature plastics, elastomers and rubbers, the Xtreme 8K enables the production of the broadest possible range of parts.

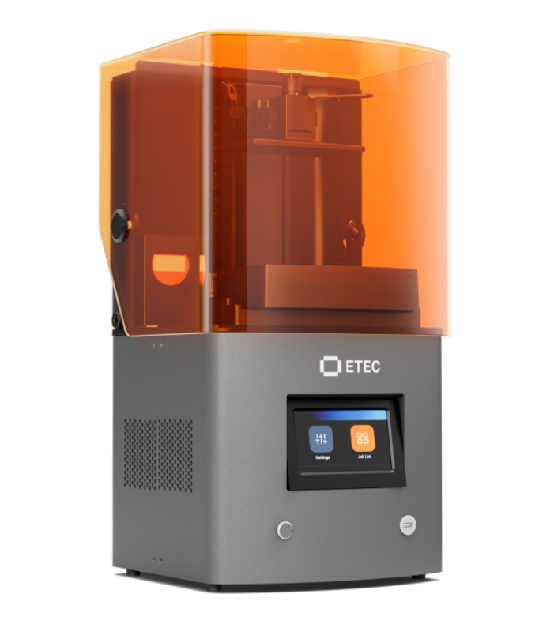

The Envision One features patented CDLM (continuous digital light manufacturing) technology, which enables the ability for continuous printing. With little to no delay between layers, the Envision One delivers exceptional speed, print resolution, surface finish, and part properties.

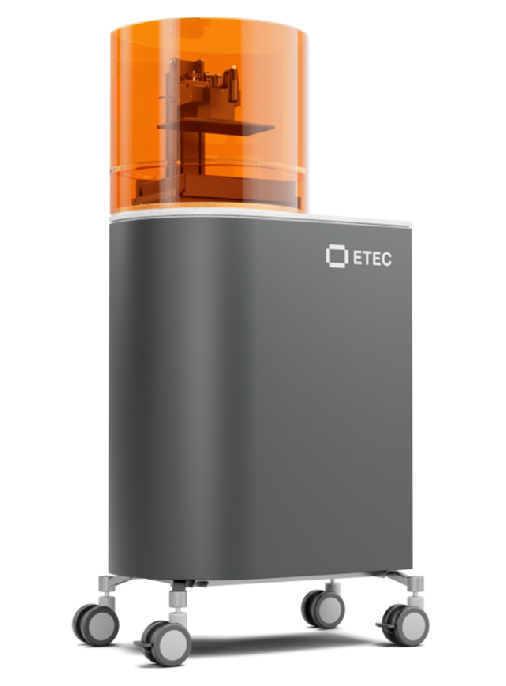

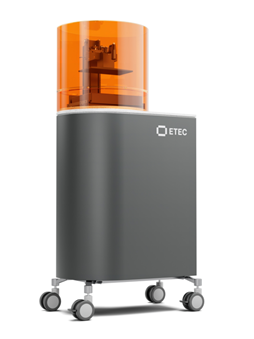

The P4K is the opposite of other, one-size-fits-all 3D printing solutions. With a range of models available, users can choose their optical configuration based on part size, feature-size requirements and throughput, and tailor a solution that best suits their needs. With resolutions of between 23µm-90µm on the X and Y axes, the P4K can easily produce detailed parts in a range of sizes.

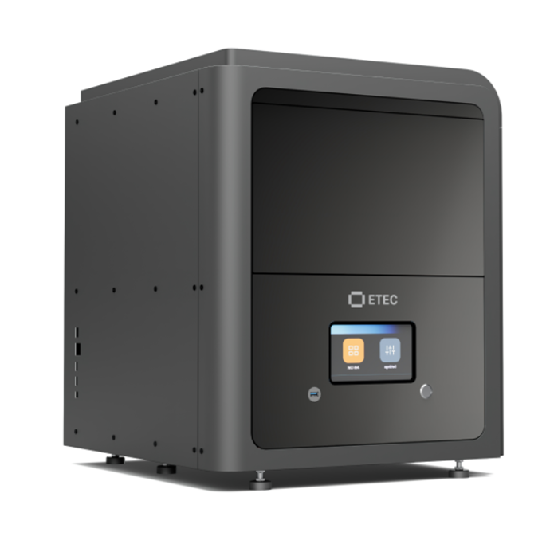

Introducing the D4K, the highest resolution professional-grade desktop 3D printer. In addition to having the fastest speed for a standard DLP printer, the D4K from ETEC delivers extremely accurate parts with the finest detail available. The D4K is compatible with most ETEC materials, including options suitable for end-use applications, dental, and jewelry.
|D4K||P4K||Envision One||Xtreme 8K|
|Desktop production of small, high resolution parts||24/7 production of small, ultra-high resolution end-use parts||Rapid production of strong, fully isotropic end-use parts||High-volume production of large end-use parts|
|PRINTER TECHNOLOGY||Digital Light Processing (DLP)||Digital Light Processing (DLP)||Continuous Digital Light Manufacturing (CDLM)||Top-Down Digital Light Processing Array|
|BUILD ENVELOPE||143 x 83 x 110 mm||From 90 x 56 x 180 to 233 x 141.5 x 180mm||180 x 101 x 175 mm and up||450 x 371 x 399 mm|
|MODELS||Standard||Flex, Pro||LT, HT, LT XL, HT XL||Standard|
|XY RESOLUTION||25µm with patented pixel tuning||23-59µm with patented pixel tuning||60µm with patented pixel tuning||100µm with patented pixel tuning|
